Stator Rotor Accessory Speed Shearing Dispersing Emulsification Pump for Fast Mixing

General Use : Commercial Furniture

Type : Laboratory Furniture

Mail packing : Y

Application : Office Building, Hospital, School

Design Style : Contemporary

Material : 316 stainless steel

Place of Origin : Shaanxi, China

Product name : High-speed shearing pump

Function : High-Speed Shearing Dispersing Emulsification Pump

Usage : Industrial Workshop

MOQ : 1 Set

Materail : Stainless Steel 304/316

Structure : BRL series

Accessory : Stator Rotor

Power : 1.5-185KW

Lead Time : 10-15days

Keyword : High-speed Emulsification

MOQ : 2 pieces

Price : $3,000.00/pieces 2-9 pieces

Contact Now

Product Description

Product Introduction
High-Speed Shearing emulsification pump is a new product researched and developed by
our company after assimilating foreign advanced techniques and processes. Its various indicators
can reach the domestic advanced level and quality can meet GMP technical requirements for
IS09001 certified products. It is especially suitable to emulsification homogeneous machine of
essential mixed liquor for re-provision, drinking, chemical engineering, biochemistry, pigment,
dye, coating and pharmacy, etc with advantages such as overall simple structure, little volume,
light weight, easy operation, low noise and stable operation, etc. The biggest characteristic is
omni-bearing function of high-speed shearing, dispersion, homogenized milk, homogeneity,
mixing, crushing and conveying without adopting grinding media in the production process.
Application scope
Food industry: Chilli sauce, sesame, fruit tea, ice cream, cream, jam, fruit juice, soybean,
soybean paste, sweetened bean paste, peanut milk, SoyaMax, soymilk, dairy product, malted milk,
essence, condiment and various eatables, etc;
Chemical industry: Paint, pigment, dye, coating, lubrication oil, Octyldodecyl Neopentanoate,
lubrication grease, diesel oil, petrochemical catalyst, emulsified asphalt, modified asphalt, paraffin,
cementing agent, detergent, plastics, dynamite, glass fiber reinforced plastics, synthetic leather,
resin, plastics, leather and emulsion explosive, etc;
Commodity chemicals: Toothpaste, detergent, cream, lipstick, mildy wash, shampoo, shoe
polish, senior cosmetics, shower gel, soap, coagulant, spice and balsam, etc;
Pharmaceutics: Various syrups, nutrient solutions, Chinese patent drugs, poultices, biological
agents, cod-liver oil, pollens, royal jelly, vaccines, ointments, oral liquids, bactericides, injection,
antibiotics, microcapsules and dropping liquid infusion, etc;
Building industry: Various coatings including inner and outer wall coating, anti-corrosive and
waterproof coating, ceramic coating, multicolor finish, ceramic glaze, nano-coating and spraying,
etc;
Paper manufacturing industry: Paper pulp, cementing agent, rosin emulsifying agent, paper
making additive and resin emulsion product, etc;
Pesticide industry: Bactericide, seed coating formulations, herbicide, emulsifiable
concentrates of pesticides, chemical fertilizer, biochemistry pesticide and biopesticide, etc;
Other industries: Textile industry, null coal floating agent, rare earth, dispersion and
depolymerization of nano materials, abstraction reaction and war industry, etc;

Usage and maintenance
1. Cooling water of machine sealing usually shall be connected to BRL pipeline type
equipment before bootstrap. Cooling water shall be cut off after shutdown. Tap water can
be used as cooling water of which pressure is less than or equal to 0.2Mpa. Bootstrap is not
allowed until materials enter into the cell with continuous feeding to avoid high-temperature
burnout or reduction of service life of machine sealing parts due to no-load operation. Hose of
Ø8mm also shall be set in inlet and outlet cooling water connectors.
2.Motor shall be started up after confirmation of supplying cooling water of machine seal.
Motor can not operate unless its rotation direction is consistent with rotation mark of main
shaft. Reverse rotation is strictly prohibited!
3.Fluids must be sent to the container continuously and maintained to certain volume during
usage. No-load operation is not allowed to avoid damage due to high temperature or crystal
solidification during operation. Reverse rotation is strictly prohibited!
4.Materials are usually sent from higher position to BRL pipeline type equipment continuously
with excellent flowability. Conveying pump of which pumping pressure is 0.3Mpa shall be set
in inlet of SRH pipeline type equipment for poor material flowability of which viscosity is not
less than 4000CP. Colloid pump (namely, cam rotor pump) shall be selected so that flow and match flow scope of selected pipeline type emulsification machine. (Flow also shall be between the minimum and maximum flow.)
5.Metal scrap and hard substances are strictly prohibited to enter into the cell to avoid destructive damage of stator, rotor and equipment.
6.To stop operation and inspect equipment instantly once there is abnormal noise or othertroubles during operation. Cell, stator and rotor also shall be cleaned after shutdown for re-operation.
7. Heat insulation layer can be set for process cell of BRL pipeline type equipment for material cooling or heating. Cooling liquid or heat transfer oil shall be supplied during bootstrap. Operating pressure of heat insulation interlayer is less than or equal to 0.2Mpa. It must be heated or cooled to normal operating temperature, jigger or bootstrap if there are temperature requirements for equipment (such as asphalt) processing.
8. Explosion-proof motors with corresponding levels must be selected for usage in a combustible and explosive working environment.
9. Equipment must be cleaned after production to maintain operating efficiency of rotor and stator and protect sealing. A set of cleaning circulation devices also shall be installed near the
equipment.
10. Inlet and outlet filter must be cleaned periodically to avoid influence to production efficiency caused by reduced inlet according to different media used by user. Only fluid can enter into the cell and dry powder or solids is strictly prohibited to enter into it directly to avoid jamming and equipment damage.
11. Stator and rotor shall be inspected periodically to replace corresponding parts with great abrasion in a timely manner to guarantee high dispersing or emulsification effect.
12. Machine seal pressure must be adjusted after shutdown if liquids in shaft leak during operation of BRL pipeline type equipment. (Machine seal will be introduced in following chapters.)
13. To formulate corresponding safety production operation regulations before equipment usage to guarantee safety of operators and equipment. Safety protection system with reliable grounding device shall be set for users of electric appliance control system.

Product Name	High-Speed Shearing Dispersing Emulsification Pump	Material	304/316 Stainless steel
Structure	BRL Series	Model	BRL
Motor power	22KW	Flow	0-22T／h

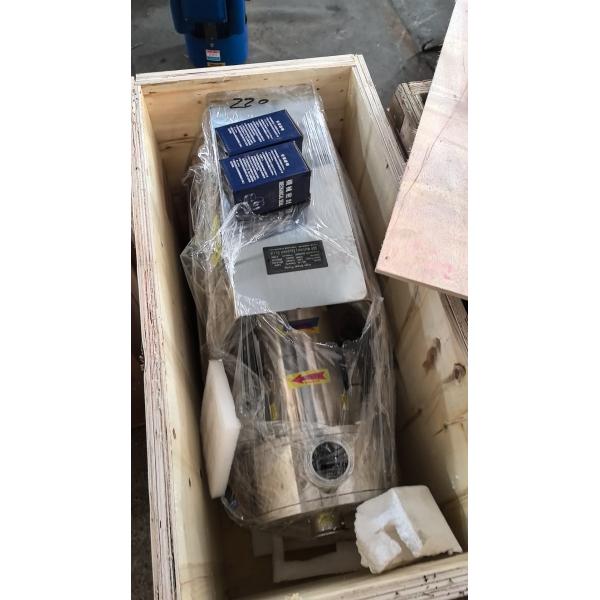

Rotation speed	2900rmp	Packing	Plywood Case
Outline pressure：	≤ 0.2 Mpa	Accessories	Stator Rotor Shell Support Machine seal Main shaft Motor Base Leveling elements
Advantages of BRL pipeline type high-speed shearing dispersing emulsification machine	1. Large treatment capacity which is suitable to industrial online continuous production; 2. Narrow distribution scope of particle size and high evenness; 3. Power consumption and time conservation with high efficiency; 4. Low noise and stable operation; 5. Eliminating quality discrepancy of batches of products; 6. 100% of material dispersing and shearing without dead corner; 7. Conveying function with short distance and low lift; 8. Easy usage and convenient repair; 9. Automation control;			Hinge	Chinese top brand hinge

Project case photos

Stator Rotor Accessory Speed Shearing Dispersing Emulsification Pump for Fast Mixing

Our Services & Strength

The ex-factory products require strict quality inspection to fully ensure that high-quality products are delivered to customers. The company'score value is "Quality First, Delivery First, Price First, Service First". It has more than 20 years of lab furniture & equipment export experience, exported to more than 50 countries and regions.
